RAK WisMesh Blade Antenna – Extended Range LoRa Node Antenna

Extend Your Mesh Range — RAK WisMesh Blade Antenna

A better antenna is the single easiest upgrade you can make to any Meshtastic or LoRa node. The RAK WisMesh Blade Antenna is purpose-built for mesh networking, with a low-profile blade design, high gain, and all-weather durability. Whether you're running 915MHz in the US or 868MHz in Europe, this antenna delivers cleaner signal and longer range than the stock antennas that come with most dev boards.

Key Features

• Dual-band support — optimized for both 915MHz (US) and 868MHz (EU) LoRa frequencies
• High gain — 2.3 dBi at 915MHz (VSWR ≤ 1.5) and 2.8 dBi at 868MHz (VSWR ≤ 1.3)
• Universal RP-SMA connector — fits Heltec, RAK, and most standard Meshtastic nodes out of the box
• Optional SMA adapter set — for nodes with SMA connectors (Tapy2 variant includes RP-SMA Female to SMA Male adapter)
• All-weather rated — operates from -30°C to +75°C for reliable outdoor deployment

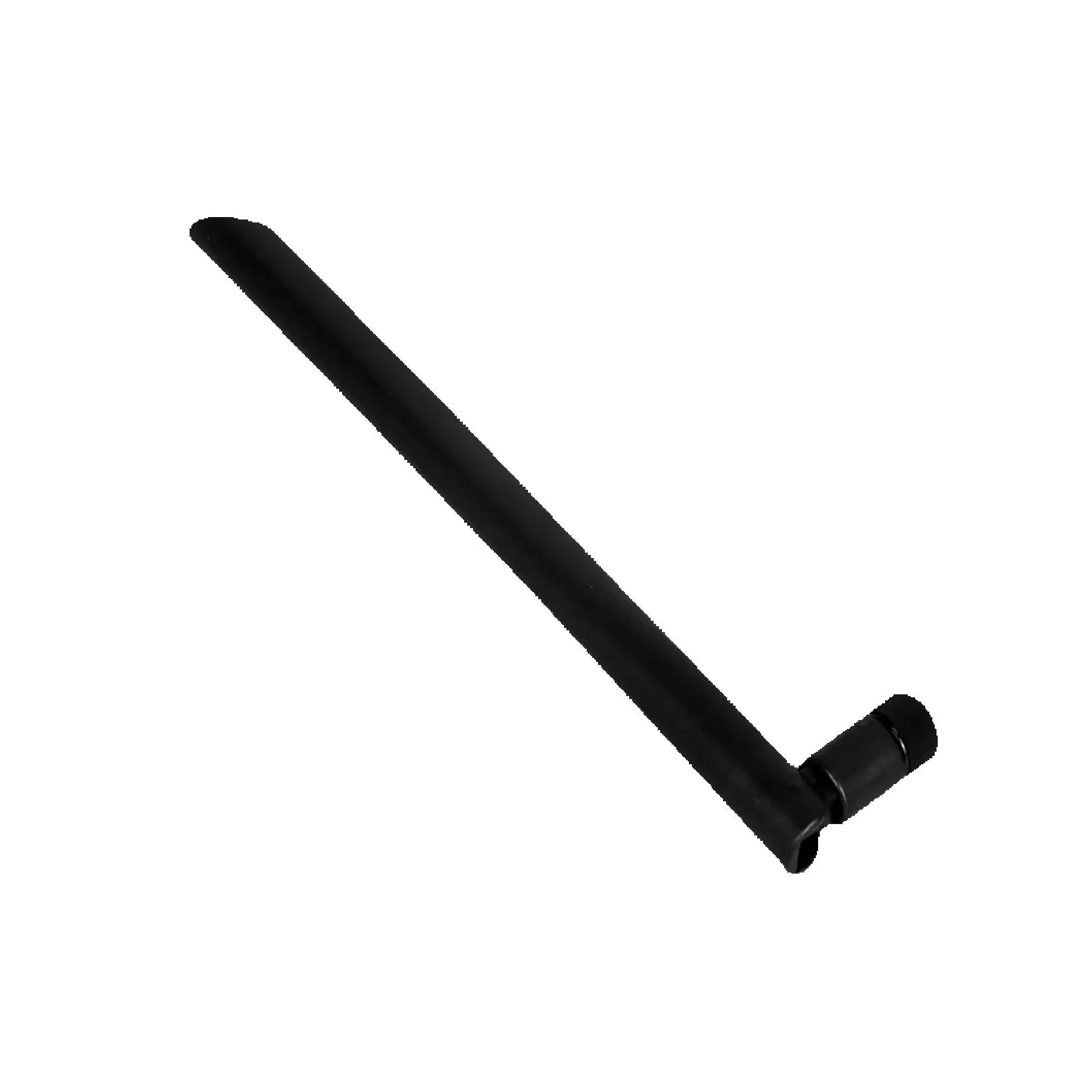

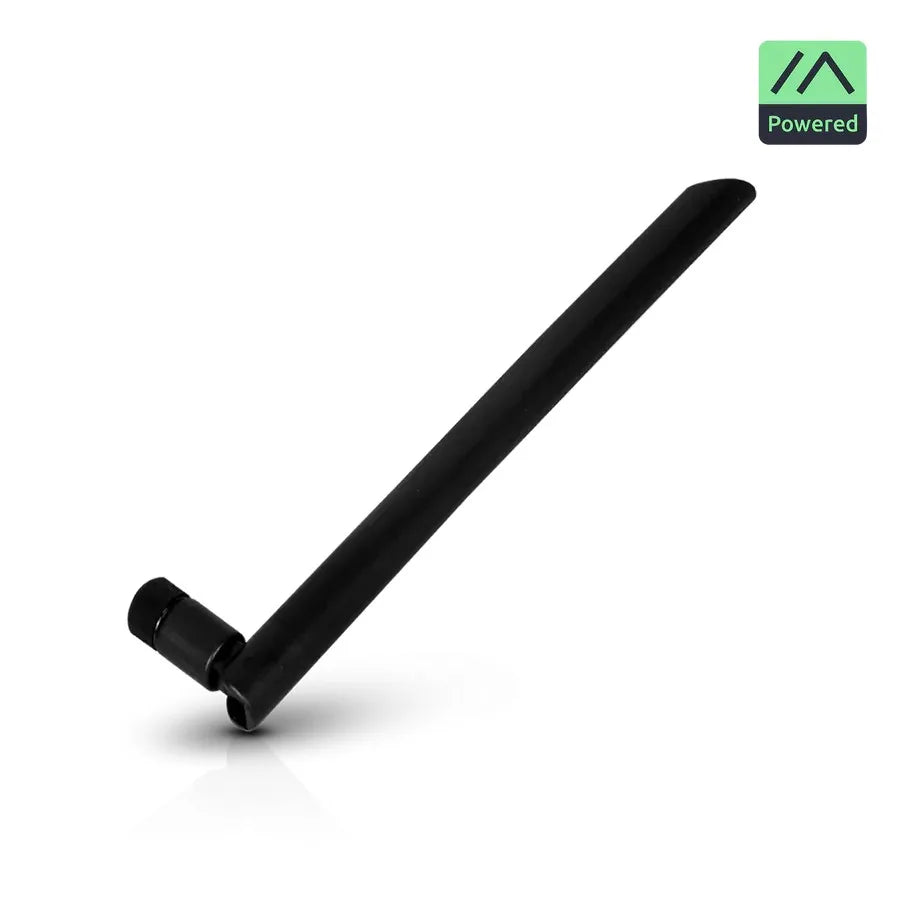

• Low-profile blade design — vertically polarized, sleek form factor that mounts cleanly indoors or outdoors

Which Variant Do I Need?

• Tapy1 — RP-SMA connector (fits most Heltec V4, RAK, and standard Meshtastic boards)

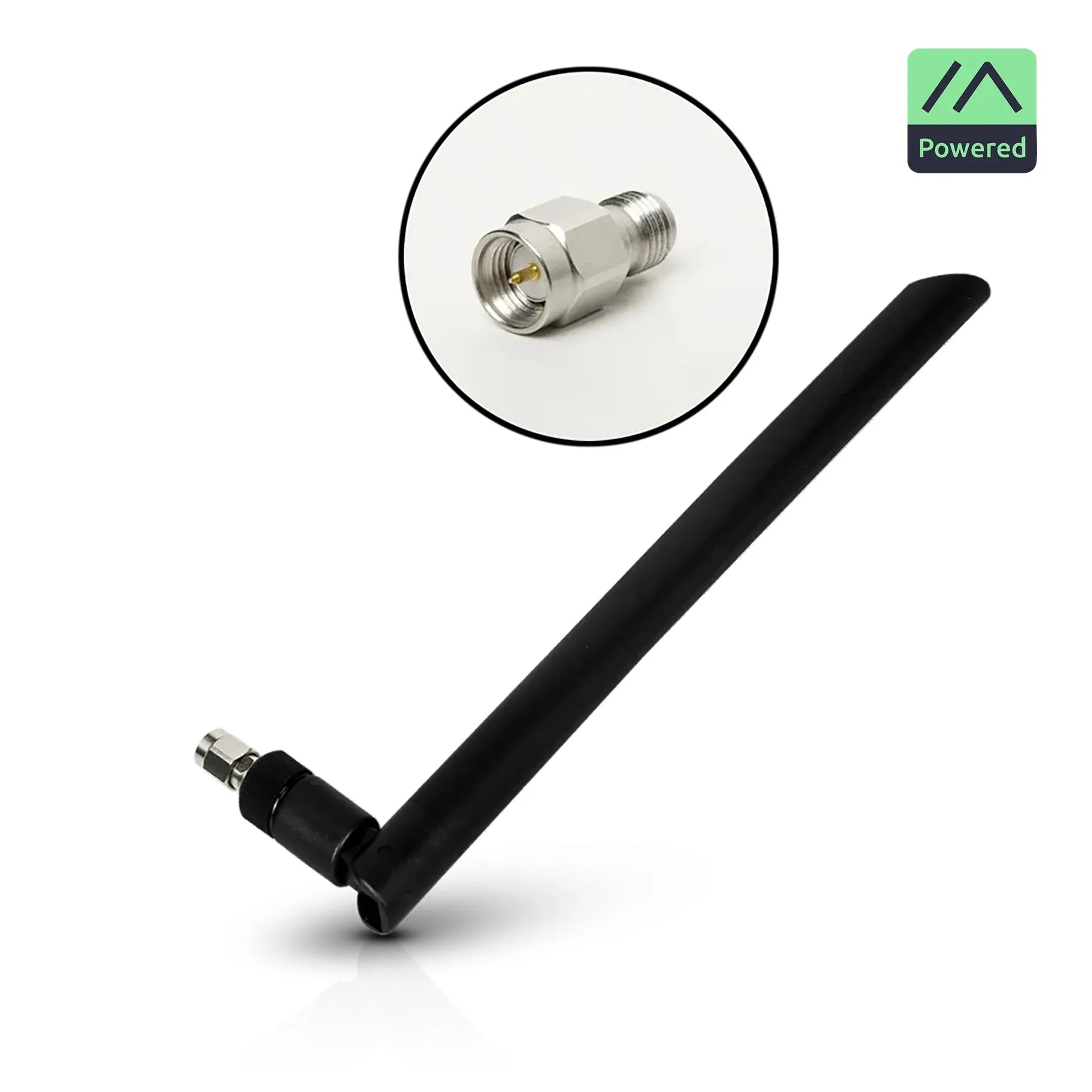

• Tapy2 — includes RP-SMA Female to SMA Male adapter (for boards with SMA connectors)

Perfect For

• Upgrading any Meshtastic or MeshCore node
• Heltec V4, RAK WisBlock, and similar LoRa dev boards
• Fixed node installations indoors or outdoors
• Extending mesh coverage in your neighborhood or backcountry network

Specs

• 915MHz: 2.3 dBi gain, VSWR ≤ 1.5
• 868MHz: 2.8 dBi gain, VSWR ≤ 1.3
• Connector: RP-SMA (Tapy1) / RP-SMA + SMA adapter (Tapy2)
• Polarization: Vertical
• Operating Temp: -30°C to +75°C
