Solar Hand Crank Emergency Weather NOAA Radio

Built for the grid-down scenario. Engineered for mission-critical reliability.

When grid failure hits or severe weather strikes, communication is your primary lifeline. The Apex-Grid Tactical Emergency Radio is an all-in-one, self-powered survival hub designed to keep you informed, illuminated, and connected when standard infrastructure fails.

Tactical Specifications

• Frequency Bands: AM (520–1710 kHz), FM (87–108 MHz), NOAA Weather Alert (162.450–162.550 MHz)

• Power Reserve: 2000mAh high-capacity lithium-ion internal battery with charge/discharge protection

• Illumination: High-intensity 3-LED cluster (1W output, ultra-bright white light)

• Chassis & Protection: Impact-resistant ABS enclosure with IPX3 water-resistance rating

• Dimensions & Weight: Compact form factor at 130 x 60 x 40 mm | 280g ultralight carry weight

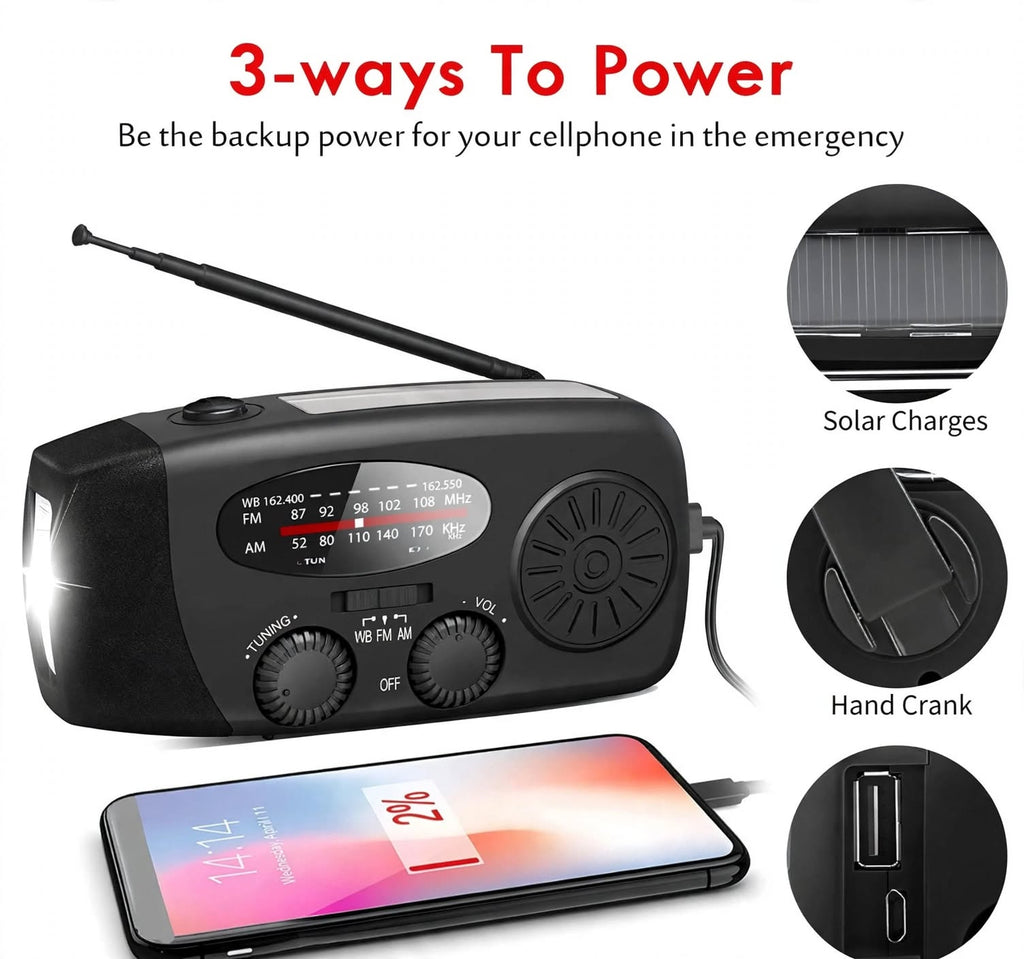

Triple-Redundancy Power Architecture

Never get caught with a dead battery. This unit features three independent energy-generation pathways to ensure continuous operation in any austere environment:

1. Solar Harvesting Panel: Integrates a top-mounted photovoltaic panel. Expose to moderate sunlight for 10–12 hours; the dedicated red power indicator illuminates to confirm active charging.

2. Hand-Crank Dynamo Generator: Features a collapsible, high-torque manual crank handle. Cranking at $\ge 130$ RPM for just 2–3 minutes yields 15–20 minutes of continuous LED illumination, 15–20 minutes of radio broadcast monitoring, or 3–5 minutes of emergency mobile talk time.

3. USB Type-C Bus: Supports rapid DC 5V input via standard USB connection for pre-deployment grid charging.

Mission-Critical Features

• Emergency Power Bank: Functions as a mobile device charger. Lift the heavy-duty side rubber seal to plug in smartphones, PDAs, or small tactical gear via standard USB output.

• Built-In Battery Health Indicator: Unlike legacy versions, the integrated real-time status LED notifies you instantly when the internal cell requires cycling or recharging.

• Precision Tuning Dial: Features a green signal-lock indicator light that automatically illuminates when you achieve a stable frequency connection on AM, FM, or NOAA weather bands.

Prepper Maintenance Protocol

• Initial Activation / Long-Term Storage: If the unit has been sitting idle in your bug-out bag or gear locker for over 60 days, perform a 3-to-5-minute manual crank or solar session to fully reactivate the internal lithium-ion chemistry.

• Cleaning: Maintain the high-impact exterior and LED lens using a soft, damp cloth. Avoid harsh chemical solvents or abrasives.

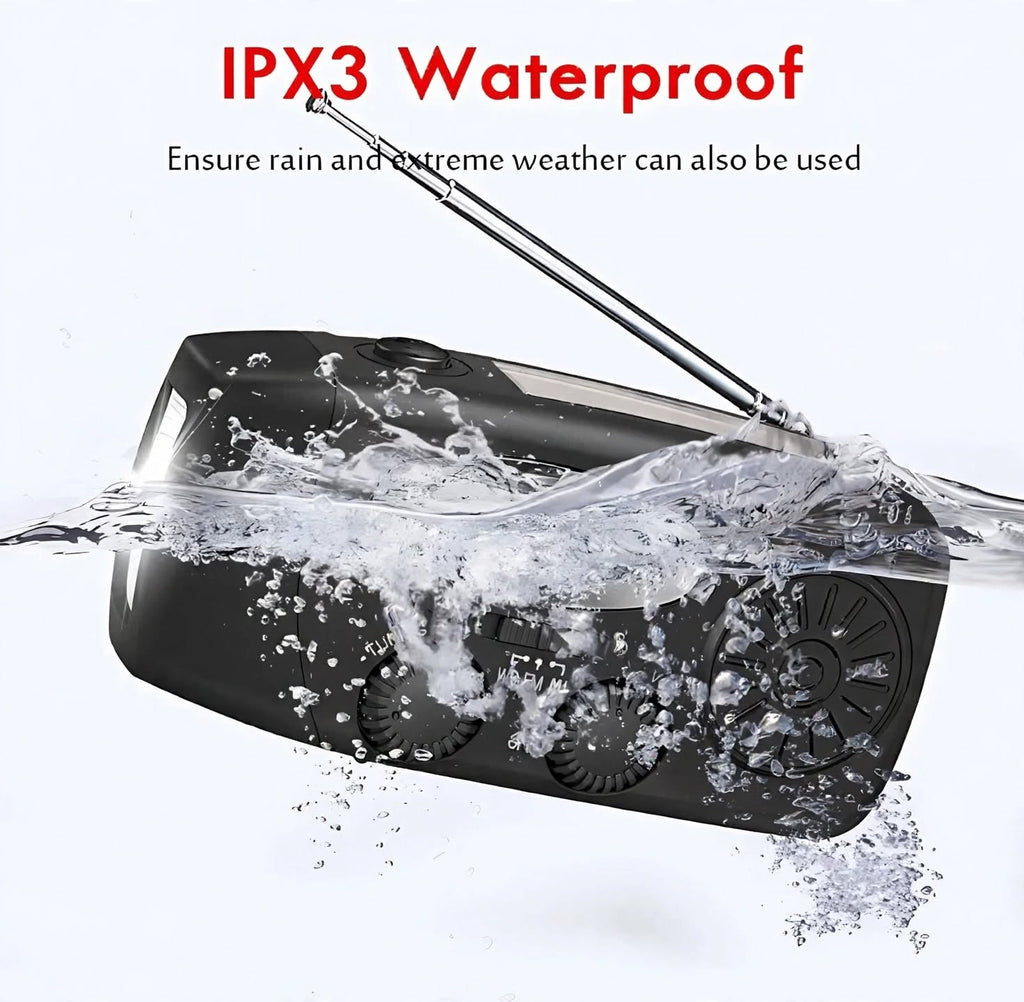

• Weather Rating Note: Rated at IPX3 water resistance—designed to withstand heavy splashes and driving mist, but do not submerge in water.
